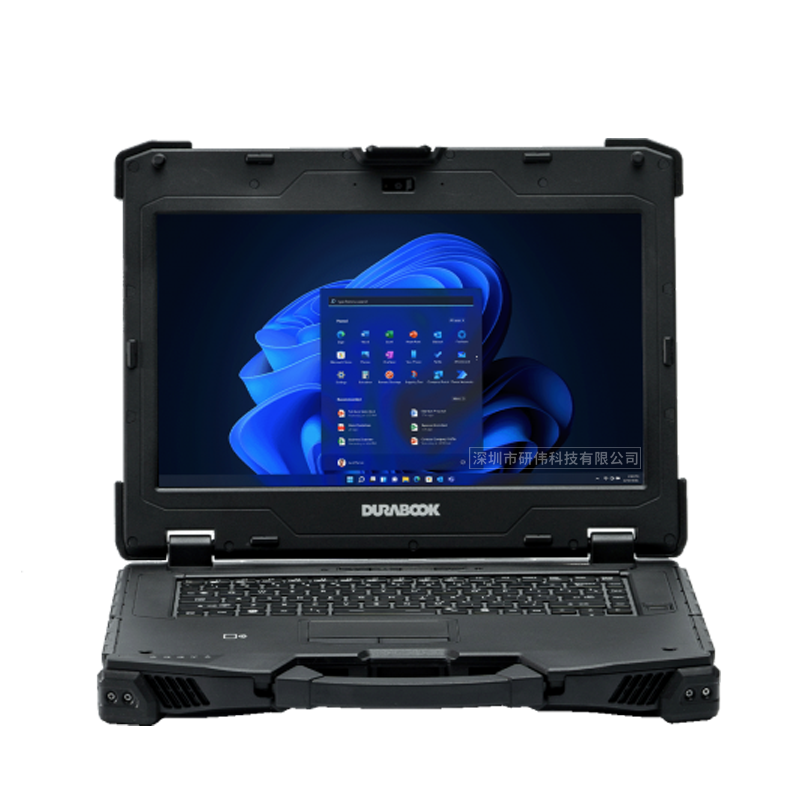

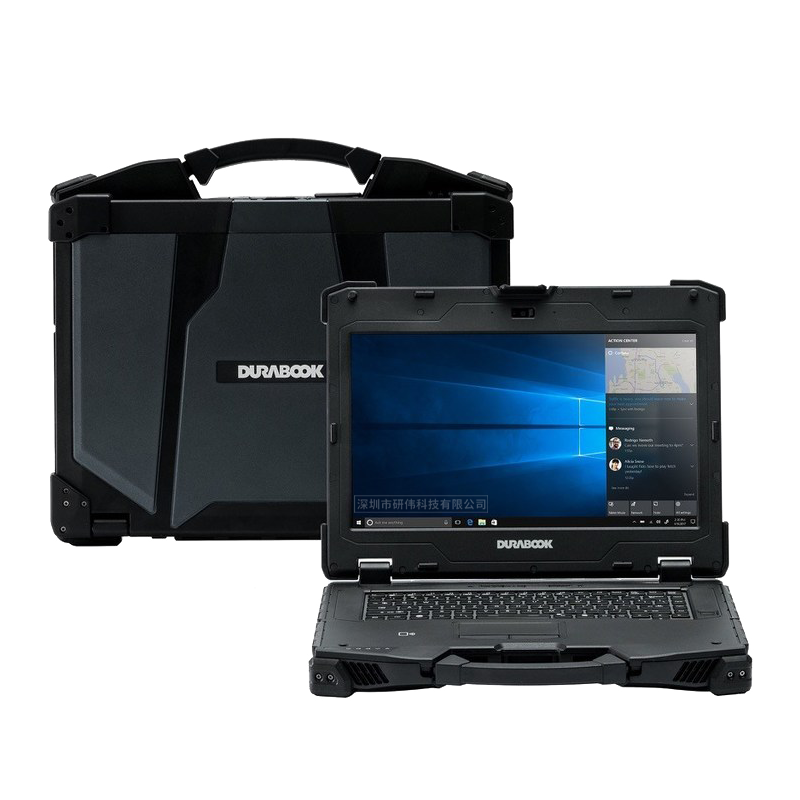

DURABOOK Z14I 三防笔记本电脑, 14 英寸野外便携式全加固型计算机,定制防爆双扩展坞槽PCIe 11代i5/i7
DURABOOK Z14I 是一台14英寸的全加固笔记本电脑，融合最新的第11代 Intel® Core™ 处理器和 Iris® Xe 图形处理功能，可高速处理数据密集型任务。其耐受最为严苛的环境条件。DURABOOK Z14I 采用IP65 保护等级，提供粉尘和水侵入防护，MIL-STD 810H 认证以及最高6英尺抗摔特性，其坚固耐用性优于市场上其他具有可比性的设备。设备还经过各种测试，包括易爆环境气体、太阳能辐射、盐雾和抗真菌，相比同级别的其他耐用型设备，优于测试标准。DURABOOK Z14I 且配备 Durabook 具有专利的DynaVue® 技术，以及高清多点触控屏，提供最高的反差率，从而有助于消除内部反射，提升了不同角度下，以及明亮日光或低亮度条件下的观看清晰度。
DURABOOK Z14I 加固笔记本电脑产品特点
DURABOOK Z14I 这款全坚固耐用的 三防笔记本电脑融合最新第11代 Intel® Core™ 处理器和 Iris® Xe 图形处理功能，可高速处理数据密集型任务。其耐受最为严苛的环境条件。Z14I 采用IP65保护等级，提供粉尘和水侵入防护，MIL-STD 810H认证以及最高6英尺抗摔，其坚固耐用性优于市场上其他具有可比性设备。设备还经过各种测试，包括易爆环境气体、太阳能辐射、盐雾和抗真菌，相比同级别的其他耐用型设备，优于测试标准。
Z14I 配备 Durabook 具有专利的DynaVue® 技术，以及高清多点触控屏，提供最高的反差率，从而有助于消除内部反射，提升了不同角度下，以及明亮日光或低亮度条件下的观看清晰度。
DURABOOK Z14I 笔记本电脑性能
Z14I 搭载 Intel® 第11 代中央处理器，以及 Iris® Xe 图形处理器，提升了拥堵数据处理所需的设备性能。凭借Intel® Wi-Fi 6 和蓝牙® V5.2 带来的高速数据处理能力，所有数据均可立即同步处理，并反馈到数据中心，且不会有任何中断。
DURABOOK Z14I 设计构造
Z14I 采用最新的机械设计和严格甄选的组件，可适应适合不同的环境条件。已通过 MIL-STD-810H 认证，其中包含的附加测试项目包括易爆环境气体、太阳能辐射、盐雾和抗真菌；还经过了IP 65 和6 英尺落下保修认证。此外，还经过MIL-STD-461G 和 ANSI C1D2认证，保证其坚固耐用性。
DURABOOK Z14I 全面定制化
这是一台提供不同接口类型的智能设备，其中配备各类可选择的附加组件，包括 Thunderbolt™ 4、2个 RJ-45 端口、2个RS-232 串行端口、ExpressCard 54 或 PCMCIA 类型 II 插槽。此外，USB选项还提供Type-C 到Type-A，或 USB 3.2 第2代到 USB 2.0 的所有功能。
可在购买时通过我们灵活的定制功能包，以符合一些客户的特定需求。
DURABOOK Z14I 显示屏
14 英寸全高清 1080p 宽屏，搭载 DynaVue® 技术，即刻展现图片的每个细节。凭借1000nits的最大亮度，还有光过滤技术，使 Z14I 这款设计卓越且坚固耐用的笔记本电脑具有最高反差比 (CR)，从而有助于消除内部反射，提升了不同角度下的观看清晰度。
DURABOOK Z14I 触摸技术
10 点电容式多点触控面板具有 4 种触控模式（手套、触控笔、水、手指），此设备采用适和室内和室外应用的优化设计；不论在何种工作条件下使用，设备的可用性均得以提升。
DURABOOK Z14I 存储升级
Z14I 采用最新的 NVMe PCIe SSD 技术，可提供最大容量 1TB 的存储空间，其采用的PCIe速度要比 SATA III 快出 4 倍。可安装 2 个内部 SATA III SSD驱动器，增加板载存储空间。

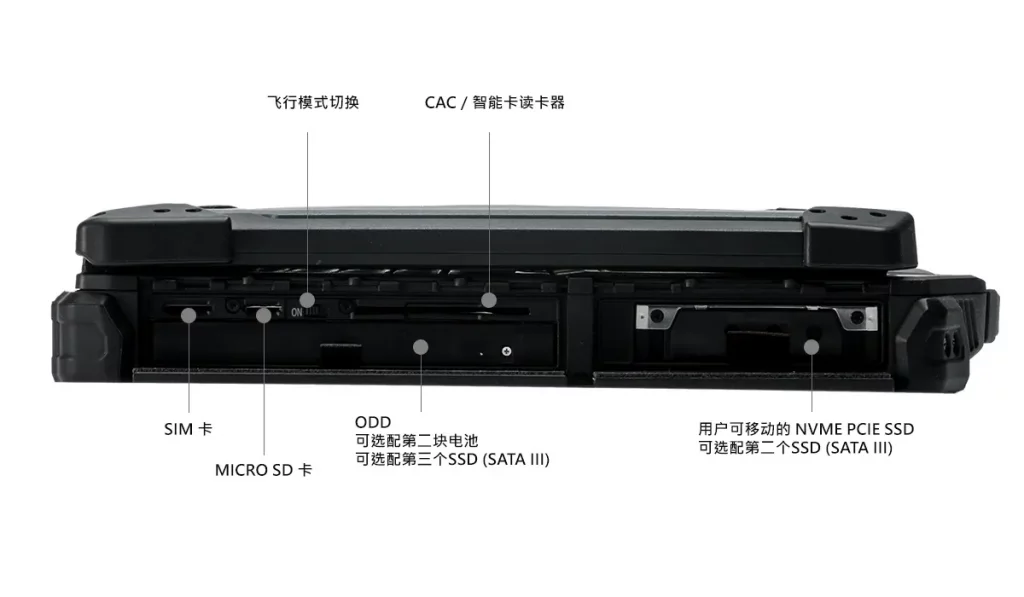

此外，Z14I 设备还提供一个用于多种设置选项的多媒体插槽，例如可选择光盘驱动器，第二块电池或第三个 SATA III SSD 存储器。
DURABOOK Z14I 功能齐全的客制化
扩展盒是 Z14I 最具优势的增强功能之一。从工作站到便携式服务器，扩展盒提供两个用于不同解决方案设计的 PCIe 插槽，一个专用显卡，军规级连接器或采用 RAID 0/1/5/10 配置的存储安全扩展。其中还可依照简单轻松的指引进行现场安装，使其成为一台功能强劲的便携式服务器或适用于特定任务的解决方案。
设备的配置方式赋予其齐全功能，确保用户获得其特定应用所需的功率、灵活性、功能性和数据安全性。
PCIe 扩展盒
独立显卡扩展坞
军规级定制连接器
配备RAID 0/1/5/10的存储扩展功能
Z14I 加固笔记本电脑概观
As Strong As It Gets. Boundless Customization.
Combined with the latest 11th Generation Intel® Core™ processor and Iris® Xe graphics capabilities, the Durabook Z14I rugged laptop can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810H certification and resistance up to six feet drop make the Durabook Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

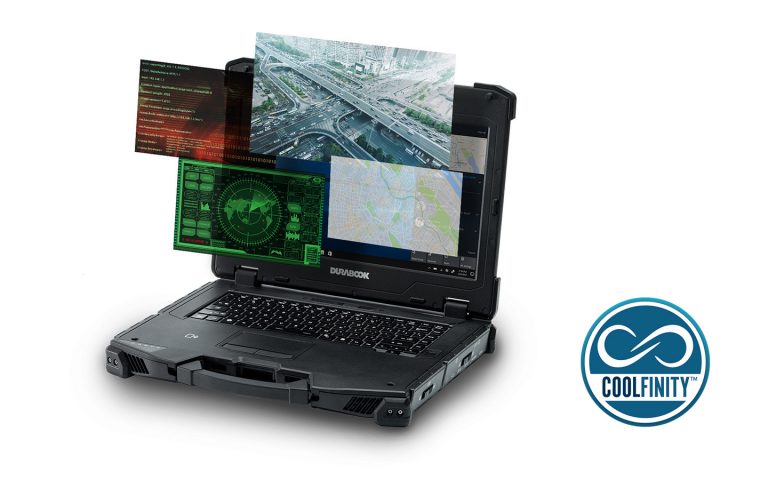

The Z14I includes Durabook’s proprietary DynaVue® technology, COOLFINITY™ fanless thermal design and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.
ENHANCED PERFORMANCE
Durabook Z14I is equipped with Intel® 11th generation CPU featuring Iris® Xe graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Wi-Fi 6 and Bluetooth® V5.2, all data can be instantly synchronized and fed back to the data center without any interruptions.

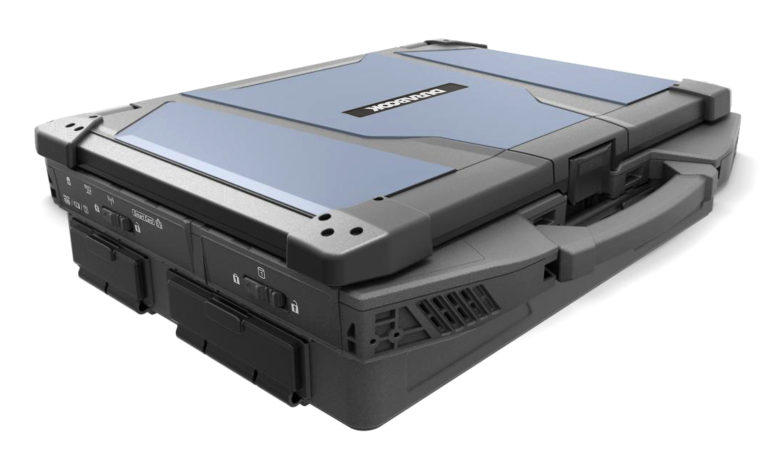

BUILT FOR ALL ENVIRONMENTS
With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G certification and COOLFINITY™ fanless thermal design which makes it more rugged than ever.
COMPREHENSIVELY CUSTOMIZED

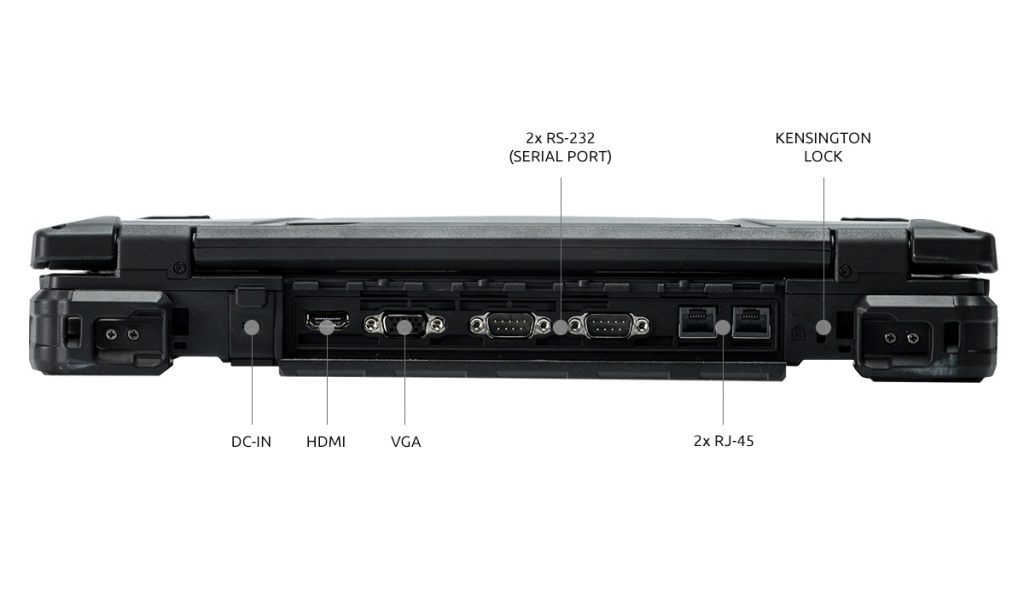

A smart device that offers you different types of interfaces with various selections of add-ons, which includes Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 or PCMCIA Type II slot. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.2 Gen2 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.
VIEWING AT ITS BEST

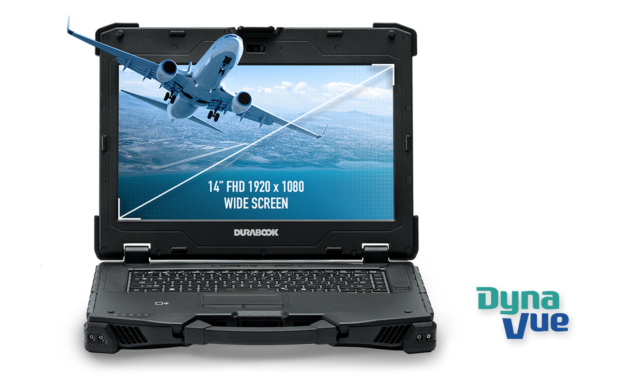

The 14-inch Full HD 1080p widescreen display along with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

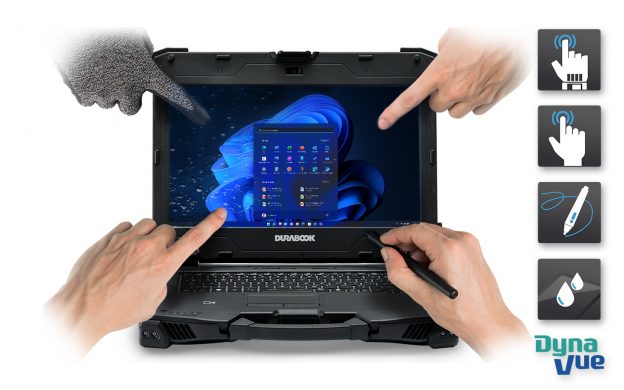

OPTIMIZED TOUCH TECHNOLOGY

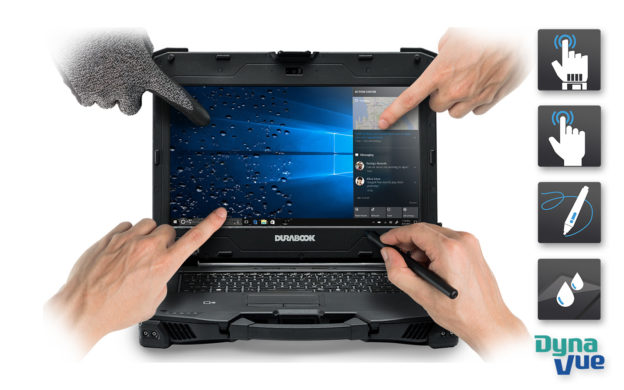

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.
STORAGE REVOLUTION
Durabook Z14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III. It can accommodate two more internal SATA III SSD drives to maximize the onboard storage.

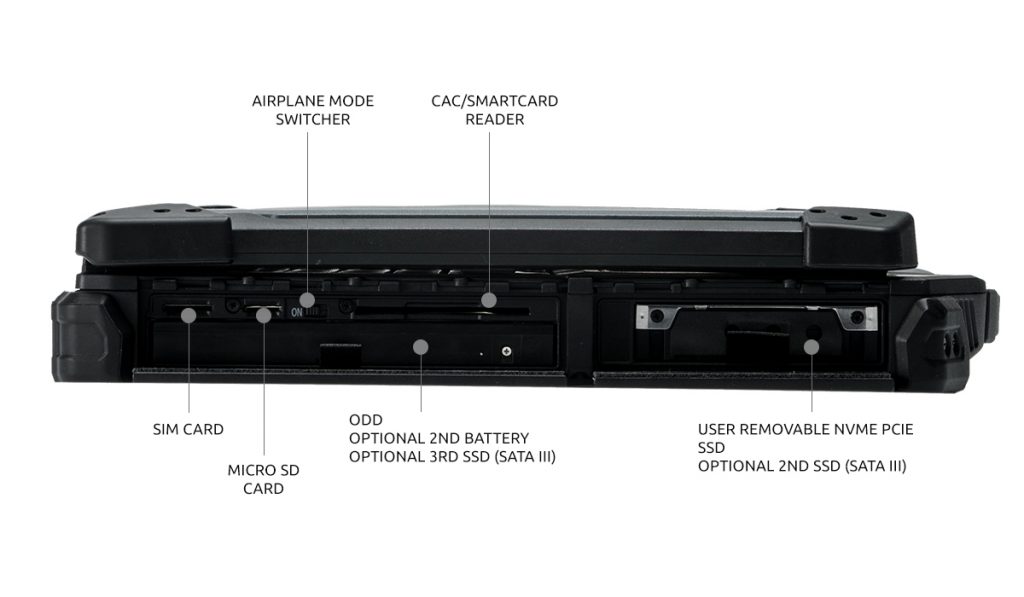

In addition, the Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a third SATA III SSD storage to select from.
ENDLESS CUSTOMIZATION POSSIBILITIES

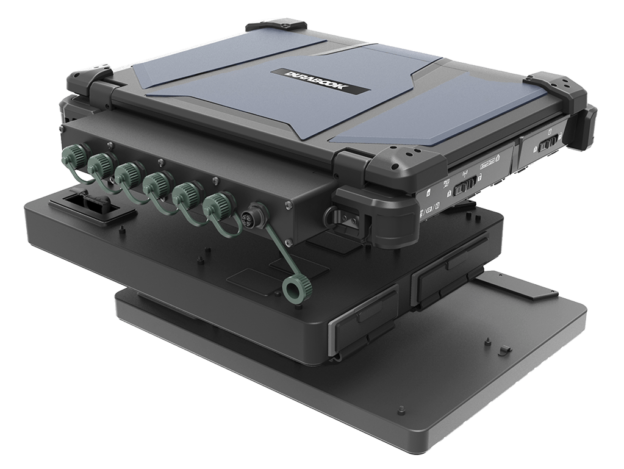

The expansion box is one of the most powerful enhancement capability of the Z14I. From a workstation to a portable server, the expansion box provides either two slots of PCIe interface for various solution builds, a dedicated graphics card, military-grade connectors or storage security extension with RAID 0/1/5/10 configurations. It could also be field installed with simple and easy guideline to become a powerful portable server or an ultimate solution for specific tasks.
The unit’s endless configuration possibilities assure users of the power, flexibility, functionality, and data security that they need for their specific applications.

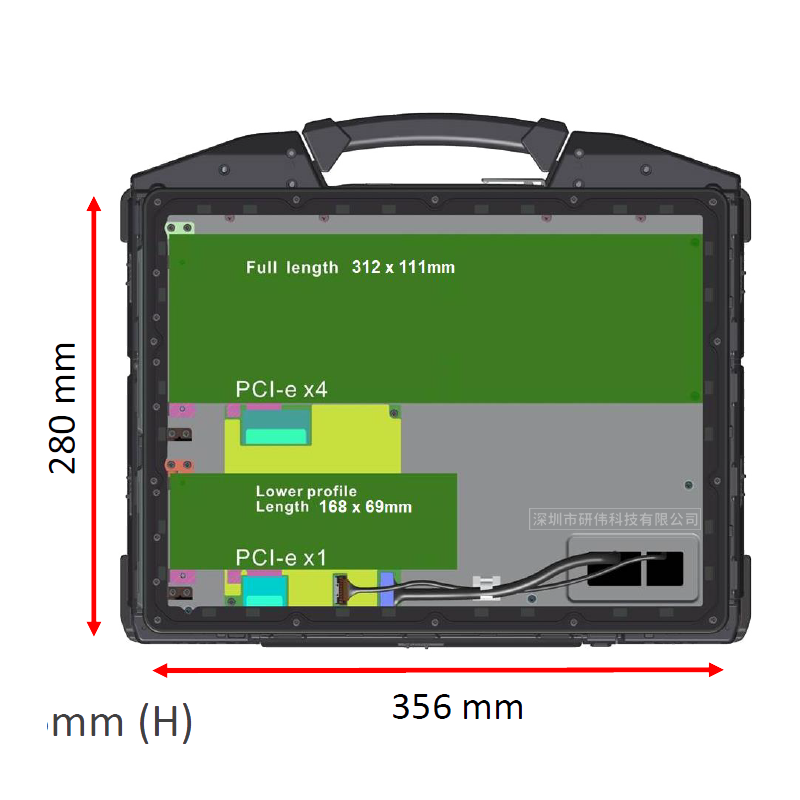

PCIe Expansion Box
Discrete VGA Expansion Chassis

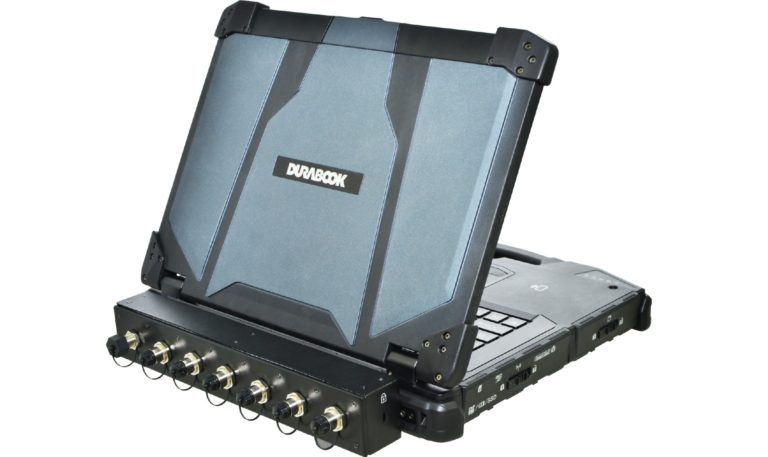

Customized Military-grade Connectors

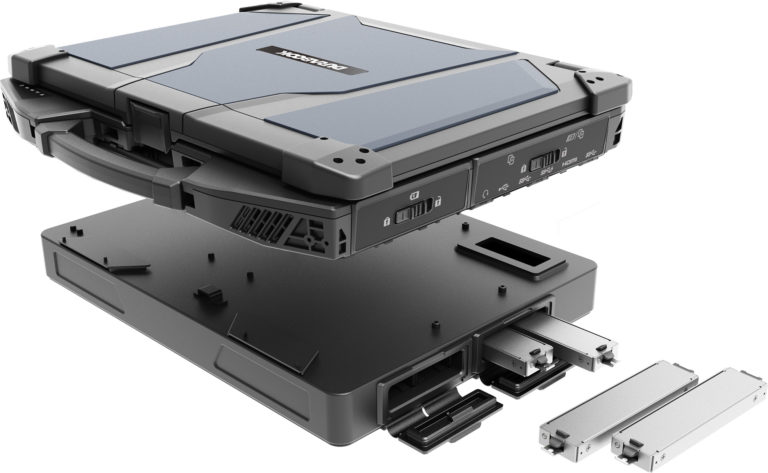

Storage Extension with RAID 0/1/5/10

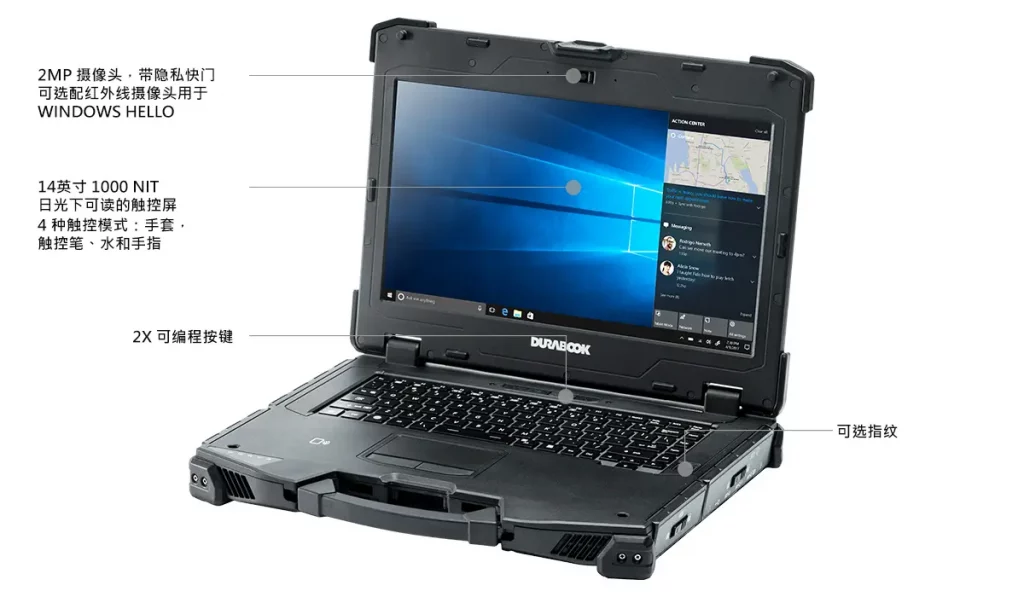

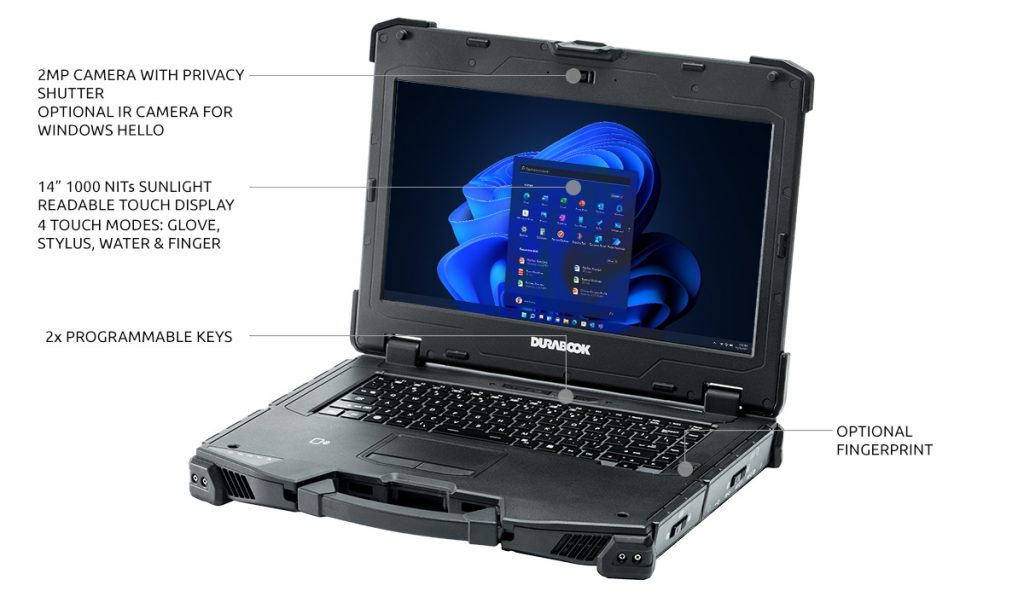

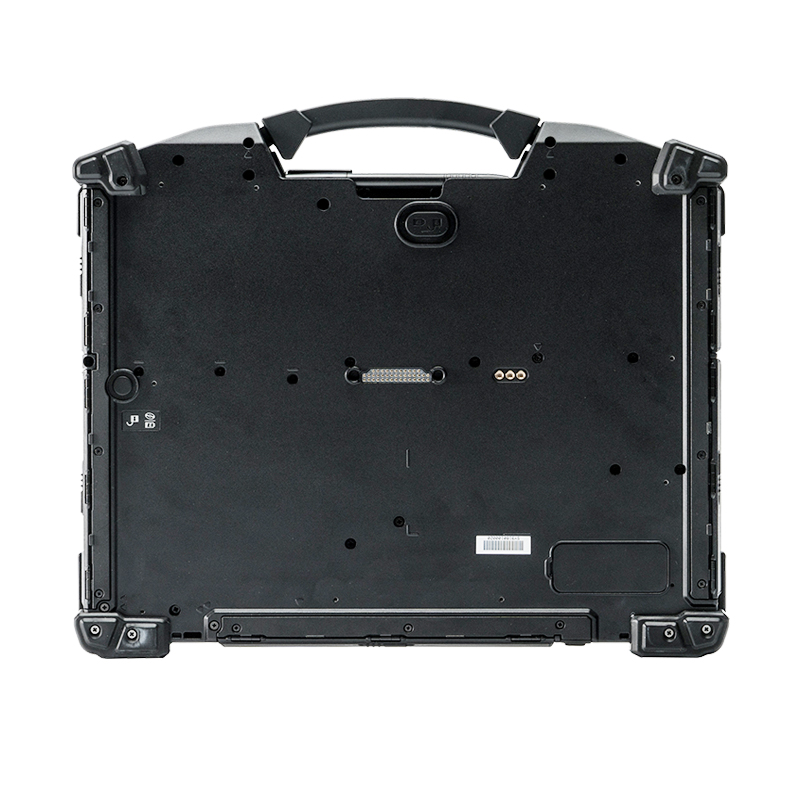

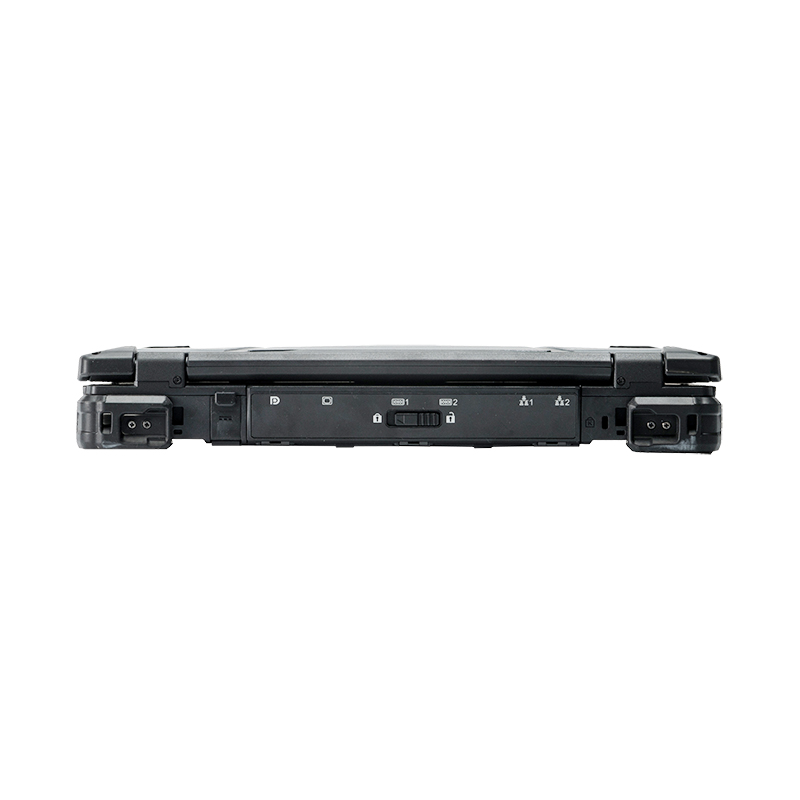

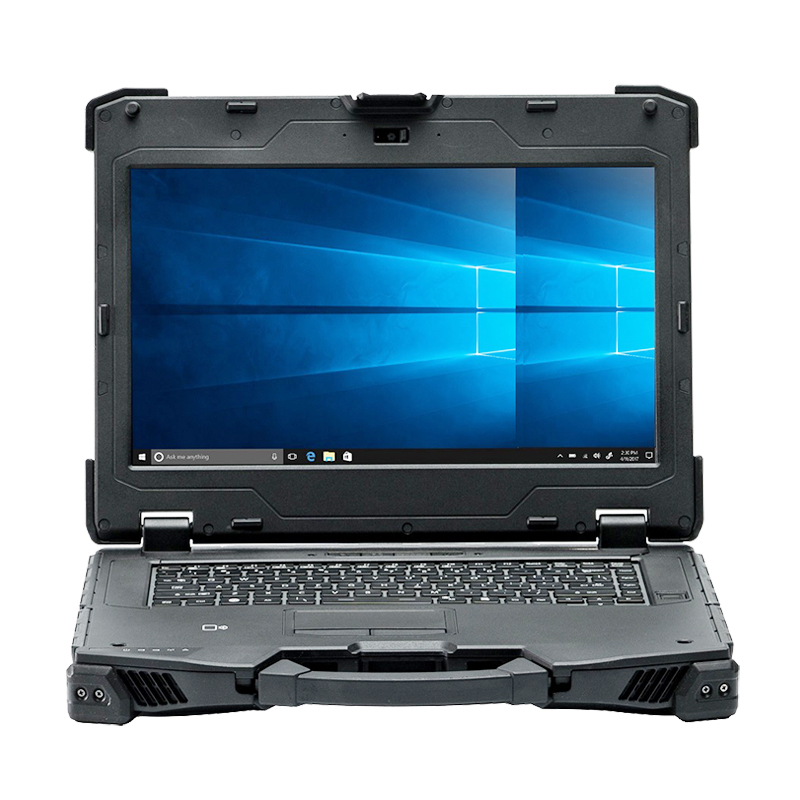

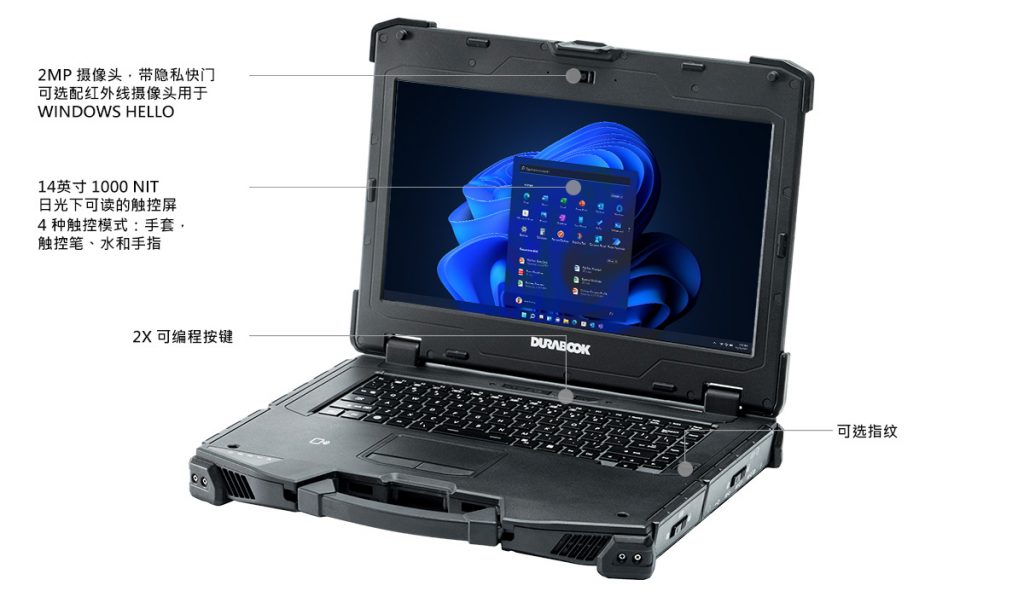

Z14I RUGGED LAPTOP ANATOMY
Durabook Z14I 技术规格/SPECIFICATIONS
| 显示屏 Display | 中文： 14.0” 全高清 (1920 x1080) 配有电容式多点触控屏幕的1000尼特DynaVue® 阳光下可读显示屏用户可选触控模式可实现手指、水、手套或触控笔可编程功能 English： 14.0” FHD (1920 x1080) 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screenUser selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| 操作系统 Operating System | 选择/Select： Windows® 10 Pro (64位) Windows® 11 Pro (64位) |
| 处理器Processors | Intel® Core™ i7-1185G7 vPro™ (第11代)3.0GHz 处理器采用 Turbo Boost 技术，最高可达4.8GHz，12MB缓存 Intel® Core™ i7-1165G7 处理器 (第11代)2.8GHz 处理器采用 Turbo Boost 技术，最高可达4.7GHz，12MB缓存 Intel® Core™ i5-1145G7 vPro™ (第11代)2.6GHz 处理器采用 Turbo Boost 技术，最高可达4.4GHz，8MB缓存 Intel® Core™ i5-1135G7 处理器 (第11代)2.4GHz 处理器采用 Turbo Boost 技术，最高可达4.2GHz，8MB缓存 |
| 内存 Memory | 2插槽 8GB 高达64GB (3200MHz DDR4) 2 slots 8GB up to 64GB (3200MHz DDR4) |
| 存储器 Storage | 中文： 主存储器 : 256GB/512GB/1TB NVME PCIE SSD 可选256GB/512GB/1TB SATA SSD 可选OPAL 2.0 SSD 可选第二和第三存储器(SATA SSD)1 English： Main: 256GB/512GB/1TB/2TB NVME PCIE SSD Optional 256GB/512GB/1TB SATA SSD Optional OPAL 2.0 SSD Optional 2nd/3rd storage (SATA SSD)1 |
| 显卡 Graphics | Intel® Iris® Xe 显卡 可选NVIDIA® GEFORCE® GTX 10501 Intel® Iris® Xe Graphics Optional NVIDIA® GEFORCE GTX 10501 |
| 摄像头 Camera | 集成式200万像素前置摄像头(包含门片设计) 可选红外摄像头 (适用于Windows Hello)1 Integrated 2.0 MP web-cam with shutter design Optional IR camera for Windows Hello1 |
| 音频 Audio | 麦克风 符合Intel®高清音频标准 扬声器 x 2 键盘音量和静音控制 Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| 扩展插槽 (仅有一个选件) Media Bay (One Option Only) | 可选DVD super Multi 可选第二电池 可选存储器(SATA SSD) Optional DVD super Multi Optional 2nd battery Optional SATA SSD |
| 扩展箱 Expansion Box | 可选PCI-Express 3.0 (2x 插槽)1,6 可选离散显卡1,6 可选RAID 0/1/5/10的存储扩展1,6 可选定制连接器1 Optional PCI-Express 3.0 (2 slots)1,6 Optional discrete VGA1,6 Optional storage extension with RAID 0/1/5/101,6 Optional military-grade connectors1 |

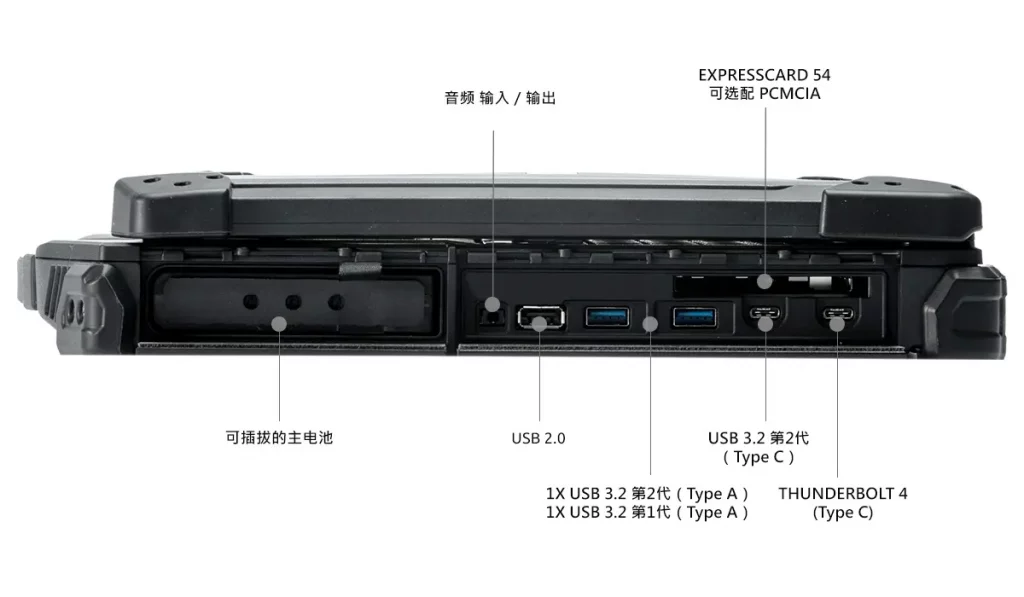

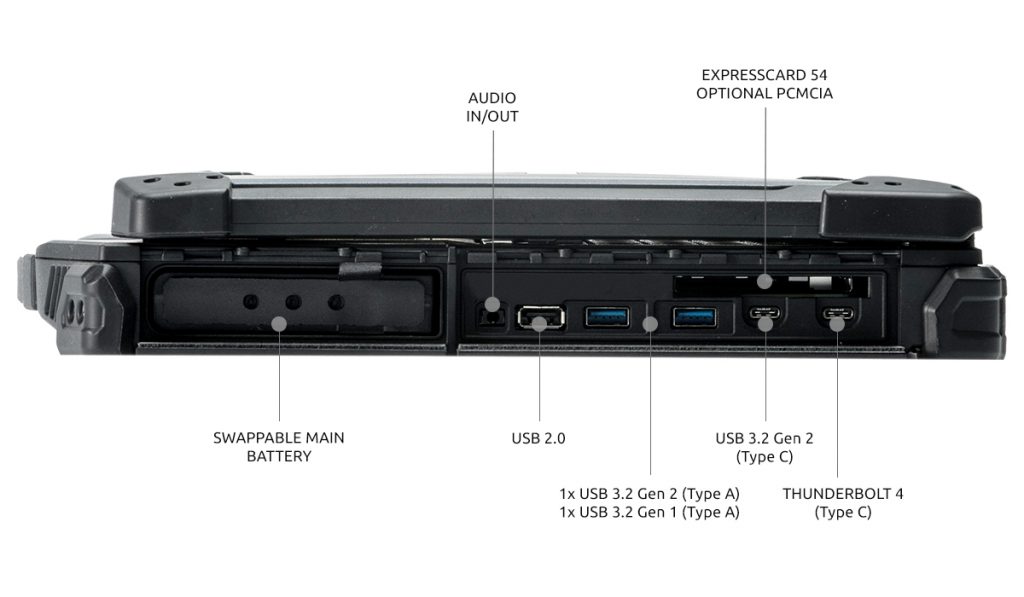

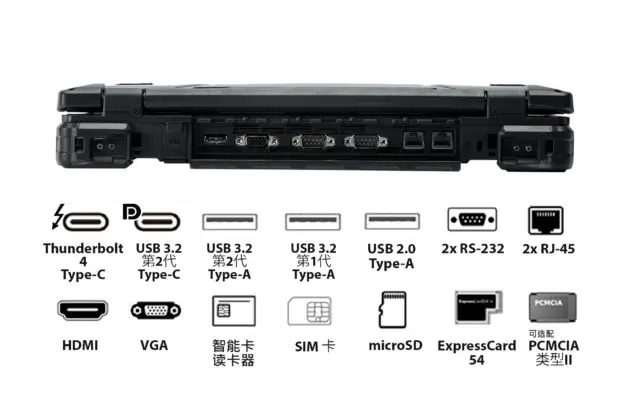

| I/O接口 I/O Ports | 中文： 雷电4 (C型) x 1 USB 3.2 Gen2 (C型) x 1 (支持DP) USB 3.2 Gen2 (A型) x 1 USB 3.2 Gen1 (A型) x 1 USB 2.0 (A型) x 1 音频输入/输出 (组合插口) x 1 microSD卡 (microSDXC) x 1 10/100/1000以太网(RJ-45) x 2 VGA端口 (D-sub，15针) x 1 HDMI端口(A型) x 1 串行端口(RS-232：D-sub，9针) x 25 底座连接器 (41针Pogo) x 1 SIM卡 x 1 智能卡读卡器 x 1 直流输入插口 x 1 ExpressCard 54 x 1 (预设) 或 II型PCMCIA x 1 可选GPS、WWAN和WLAN射频天线直通接口 English： Thunderbolt 4 (type C) x 1 USB 3.2 Gen2 (type C) x 1 (support DP) USB 3.2 Gen2 (type A) x 1 USB 3.2 Gen1 (type A) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232 : D-sub,9-pin) x 25 Docking connector (41-pin Pogo) x 1 SIM card x 1 Smart card reader x 1 DC-In jack x 1 ExpressCard 54 x 1 (default) or PCMCIA Type II x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| 键盘和输入 Keyboard & Pointing Device | 2个用户自定义按键(P1/P2) RF信号滑动开关 标准LED背光薄膜键盘 2 user-definable keys (P1/P2) RF signal slide-switch Standard membrane keyboard with LED backlight |
| 通信 Communications | 集成式10/100/1000以太网 Intel® Wi-Fi 6 AX201 (802.11 ax) Bluetooth® V5.2 可选专用GPS模块(UBLOX-NEO-M8N) 可选4G LTE移动网络模块 可选三合一（GPS，WWAN和WLAN）天线直通接口 Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6 AX201 (802.11 ax) Bluetooth® V5.2 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| 安全 Security | Intel® vPro™技术（根据CPU选件） TPM 2.0 符合NIST BIOS 易插拔SSD 默认配有智能卡读卡器 隐身模式 防盗锁 夜视模式 可选Windows Hello1 可选指纹扫描仪 可选HF/LF RFID读取器1 Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Smart card reader Stealth mode Night vision mode Kensington lock Optional Windows Hello1 Optional fingerprint scanner Optional LF/HF-RFID (NFC) reader1 |
| 电源 Power | 交流电源适配器:100-240V, 50Hz-60Hz, 90W 主锂电池 10.8V, 7800mAh, 16小时2 可选第二 10.8V锂电池 10.8V, 4700mAh, 9小时2 可选桥式电池:5分钟的交换时间3 AC adapter : 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 6900mAh, 12.5 hours2 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2 Optional bridge battery : 5 minutes swap time3 |
| 尺寸和重量 Dimension & Weight | 356 mm(长)x 280 mm(宽)x 50 mm(高)4 3.6千克4 |
| 质保 Warranty | 三年有限标准保修 3-year limited warranty standard |
- 请联系您的销售代表了解可用功能。
- 按照MobileMark 2014电池使用寿命基准进行测试。不同情况（包括硬件配置、软件、工作条件、电源管理设置以及其它因素）下得出的结果可能不同。
- 用户更换电池时，系统将保持运行状态（待机模式下300秒内）。
- 重量及尺寸视选件而有所不同。
- 一个串行端口支持RS-422/RS-485。
- 不可同时提供。
- Contact your sales representative for feature availability.
- Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
- The system will stay operating within 300 seconds when user swaps the battery.
- Weight and dimension vary with options.
- One serial port supports RS422/RS485.
- Mutually exclusive options.

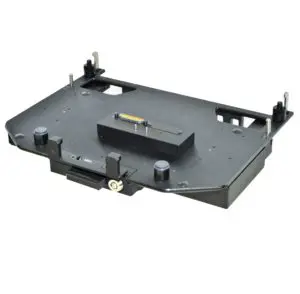

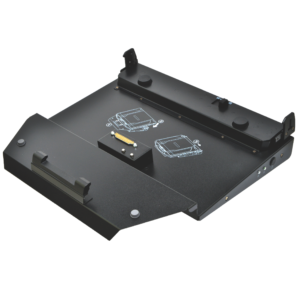

Z14I 加固笔记本电脑配件
